MS-700

droneborne

4.7 kg
Maximized weight efficiency

3x6'' CsI crystal
Robust & shock proof

500 hours
Internal storage

IP67 waterproof

-20 / + 65 C
Arctic and desert mapping

Up to 20 km/h
Typical survey speed

Do you need more information on our sensors?

Application

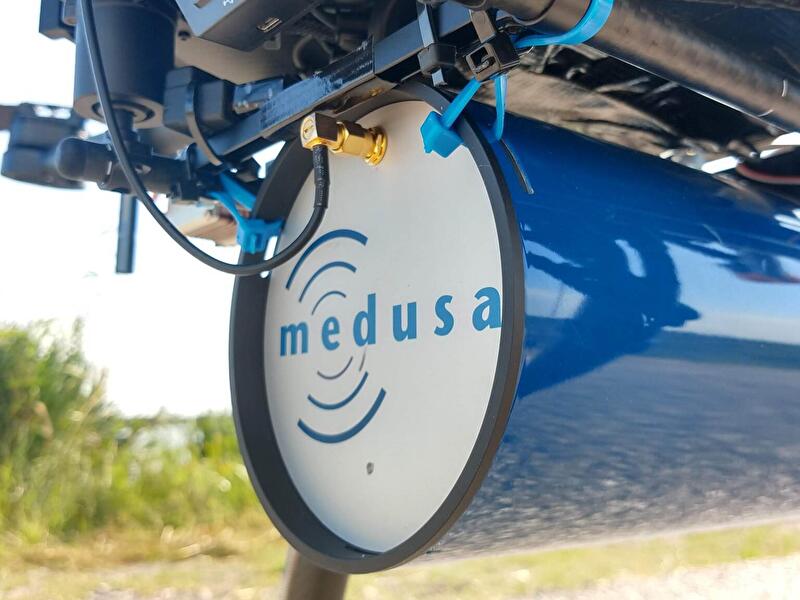

Drone borne: The Medusa Radiometrics MS-700 is, like its big brother, the MS-1000, optimized for use on drones. Its payload under 5 kg makes it well-suited for off-the-shelf drones. It performs exceptionally well when flying low and slow. It can be used for prospecting, soil mapping, and pollution mapping.

Leading in gamma-ray sensors

Leading in innovative gamma-ray solutions

Academic collaboration

Scientific collaboration with eminent research institutes and peer-reviewed publications of the analysis procedures.

Experienced

We have over 20 years of experience in developing gamma–ray spectrometers and applications.

Scintillation crystal

700 ml Csl

Mapping speeds

Up to 20 km/h

Recording frequency

Up to 5hz

Online Radionuclide analysis

⁴⁰K, ²³⁸U, ²³²Th and ¹³⁷Cs

Type

uBlox ZED-P9P

Signals

GLONASS, BeiDou, Galileo

Accuracy

1.5 m CEP

RTK accuracy

<1 cm

Format

JSON, NMEA, CSV

Streaming

RS-232, ethernet and Wi-Fi

Sensors

Spectrometer, GPS, PTH

Internal storage

16 GB

Dimension

100 (⌀) x 295 (L) mm

Weight

4.7 kg

Operating T

-20 to +65 °C

IP rating

IP65

Input voltage

5-35V

Power consumption

3W (avg), 6W (max)

Battery

Up to 8 hours

Wi-Fi

2.4 and 5 Ghz

Ethernet

100 Mbps

Port

RS-232

mDOS

Whether doing an airborne survey, locating a lost source with a UAV, or using our detector for a handheld survey for mapping the environment, you can count on using the same familiar interface. mDOS is developed for in-the-field usage. Optimized for real-time monitoring, ease of use and automating your survey workflow.

GammAn

GammAn is our comprehensive post-processing software tailored specifically for analyzing measurement results obtained from our gamma-ray detection systems.

Both mDOS and Gamman have been developed with a focus on user-friendliness, ensuring that users of all skill levels can effortlessly navigate and leverage the full potential of our detection systems. Whether you are a seasoned expert or new to gamma-ray analysis, our software packages provide the tools you need for accurate measurements and meaningful data interpretation.

Use

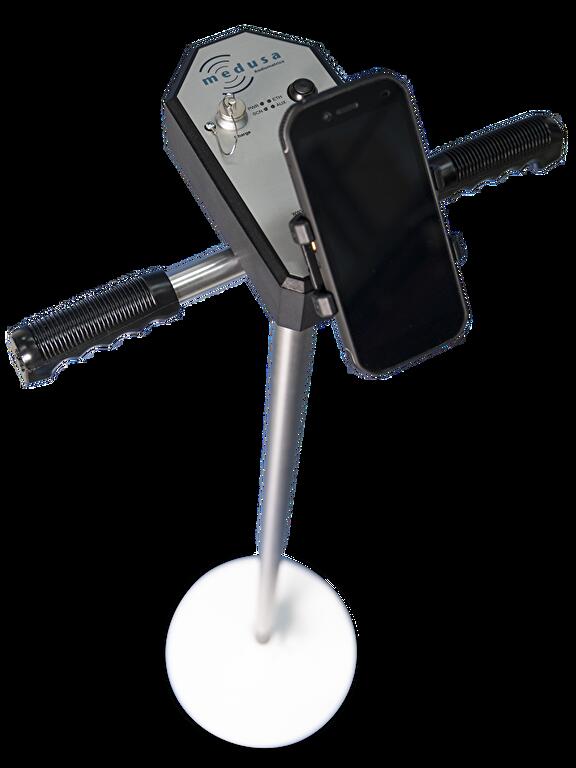

Typical usage	Handheld
Mapping speeds	n/a
Applications	Soil density meter

Use
Typical usage	Air-borne
Mapping speeds	Up to 90 km/h
Applications	Mineral and soil mapping

Use
Typical usage	Vehicle-borne
Mapping speeds	Up to 45 km/h
Applications	Mineral and soil mapping

Specs
Scintillation crystal
Weight	1.8 kg
Sensors	Soil density, GPS, moisture

Specs

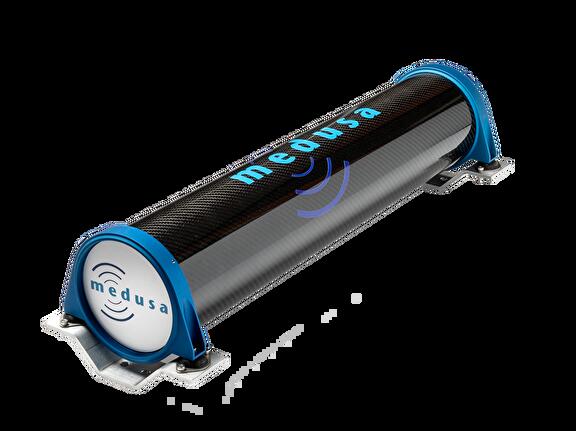

Scintillation crystal	4000 ml CsI
Weight	29 Kg
Sensors	Spectrometer, GPS, PTH

Specs

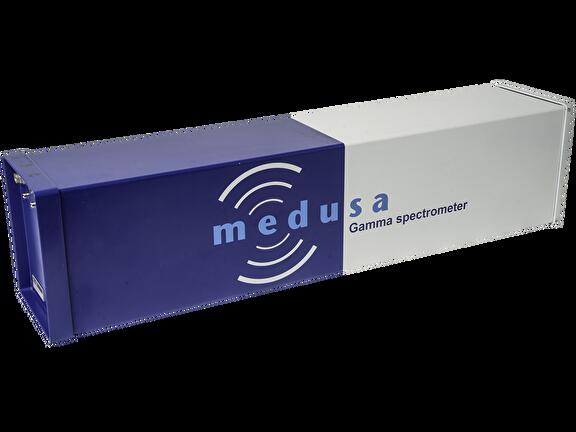

Scintillation crystal	2000 ml CsI
Weight	12 kg
Sensors	Spectrometer, GPS, PTH

MS-700

Application

MS-700 brochure (download)

mDOS

GammAn
