MS-2000

VEHICLEborne

11 KG
Weight optimized

90x310mm CsI crystal
Shock-proof

500 hours
Internal storage

IP67
Waterproof

-20 / + 65 C
Arctic and desert mapping

Up to 45 km/h
Vehicle borne mapping

Do you need more information on our sensors?

Application

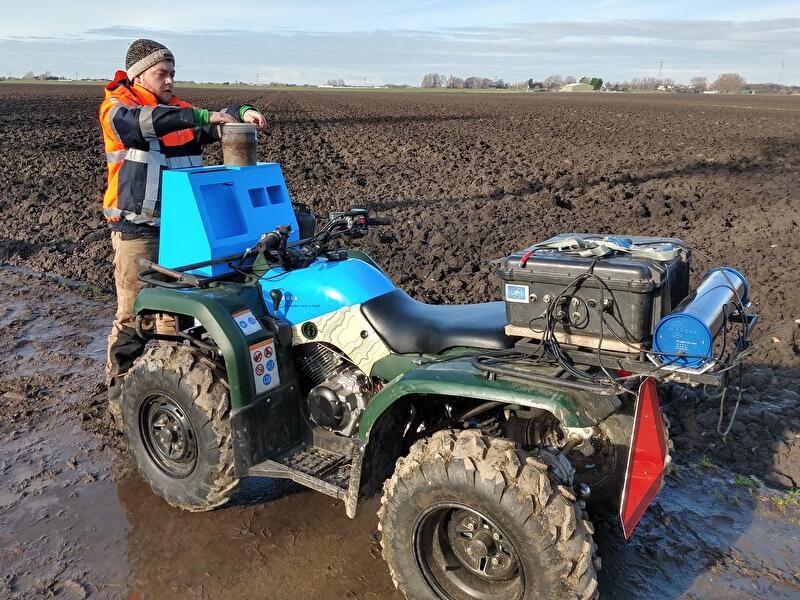

Soil and sediment mapping, vehicle borne:
The Medusa Radiometrics MS-2000-CsI-MTS product line of radiation detection systems comprises a line of power-efficient, lightweight and robust gamma-ray sensors developed with vehicle-borne mapping applications in mind. The housing is ultra-rugged made of kevlar strengthened carbon fibre and has extra rugged end-caps. The system can be mounted on all kinds of vehicles, tractors, quads or cars.

Leading in gamma-ray sensors

Leading in innovative gamma-ray solutions

Academic collaboration

Scientific collaboration with eminent research institutes and peer-reviewed publications of the analysis procedures.

Experienced

We have over 20 years of experience in developing gamma–ray spectrometers and applications.

Scintillation crystal

2000 ml CsI

Mapping speeds

Up to 45 km/h

Recording frequency

Up to 5hz

Online Radionuclide analysis

⁴⁰K, ²³⁸U, ²³²Th and ¹³⁷Cs

Type

uBlox ZED-P9P

Signals

GLONASS, BeiDou, Galileo

Accuracy

1.5 m CEP

RTK accuracy

<1 cm

Format

JSON, NMEA, CSV

Streaming

RS-232, ethernet and Wi-Fi

Sensors

Spectrometer, GPS, PTH

Internal storage

16 GB

Dimension

120 (⌀) x 605 (L) mm

Weight

12 kg

Operating T

-20 to +65 °C

IP rating

IP65

Input voltage

12-35V

Power consumption

3W (avg), 6W (max)

Battery

n.a.

Wi-Fi

2.4 and 5 Ghz

Ethernet

100 Mbps

Port

RS-232

mDOS

Whether doing an airborne survey, locating a lost source with a UAV, or using our detector for a handheld survey for mapping the environment, you can count on using the same familiar interface. mDOS is developed for in-the-field usage. Optimized for real-time monitoring, ease of use and automating your survey workflow.

GammAn

GammAn is our comprehensive post-processing software tailored specifically for analyzing measurement results obtained from our gamma-ray detection systems.

Both mDOS and Gamman have been developed with a focus on user-friendliness, ensuring that users of all skill levels can effortlessly navigate and leverage the full potential of our detection systems. Whether you are a seasoned expert or new to gamma-ray analysis, our software packages provide the tools you need for accurate measurements and meaningful data interpretation.

Use
Typical usage	Handheld
Mapping speeds	n/a
Applications	Soil density meter

Use
Typical usage	Air-borne
Mapping speeds	Up to 90 km/h
Applications	Mineral and soil mapping

Use
Typical usage	Drone-borne
Mapping speeds	Up to 30 km/h
Applications	Mining & environmental

Specs
Scintillation crystal
Weight	1.8 kg
Sensors	Soil density, GPS, moisture

Specs
Scintillation crystal	4000 ml CsI
Weight	29 Kg
Sensors	Spectrometer, GPS, PTH

Specs
Scintillation crystal	1000 ml Csl
Weight	6.7 kg
Sensors	Spectrometer, GPS, PTH
