Medusa MS-RhoC5 soil density meter

RhoC 5

The Medusa Radiometrics RhoC 5 measures soil bulk density in the field. Soil bulk density is an important physical soil health indicator and
generally used for assessing soil quality. The RhoC 5 measures the backscatter of gamma radiation emitted from a (low-activity) source, which can be used without legislation.

HAndheld

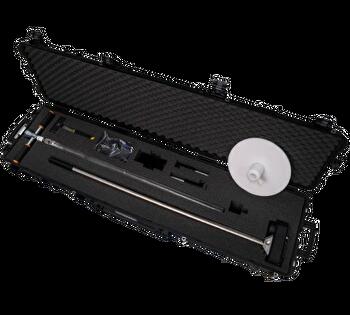

MS-RhoC5 case with accesoires included

1800 G

1317 MM

Bluetooth

IP68 waterproof

-20 / + 85 C

Stationary

Do you have applications specific requirements?

We offer knowledge, consultancy and extended manuals.

Contact us

Application

The Medusa Radiometrics RhoC 5 measures soil bulk density in the field. The RhoC 5 measures the backscatter of gamma radiation emitted from a (low-activity) source, which can be used without legislation.

The sensor can measure up to 80 cm deep and only needs a hole of 30 mm diameter for such a measurement. With this sensor, there is no need for a soil pit or any laboratory work to determine soil bulk density, the sensor provides the measured densities during measurement in the field.

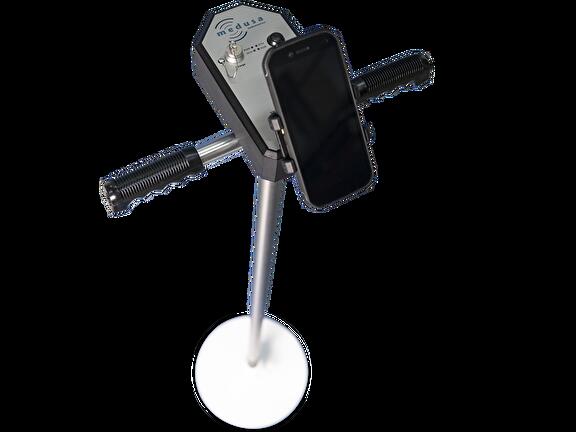

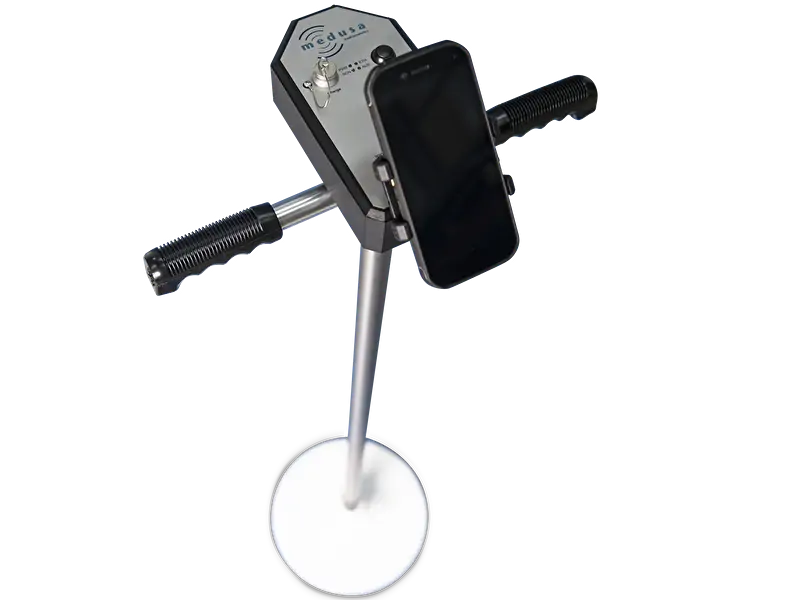

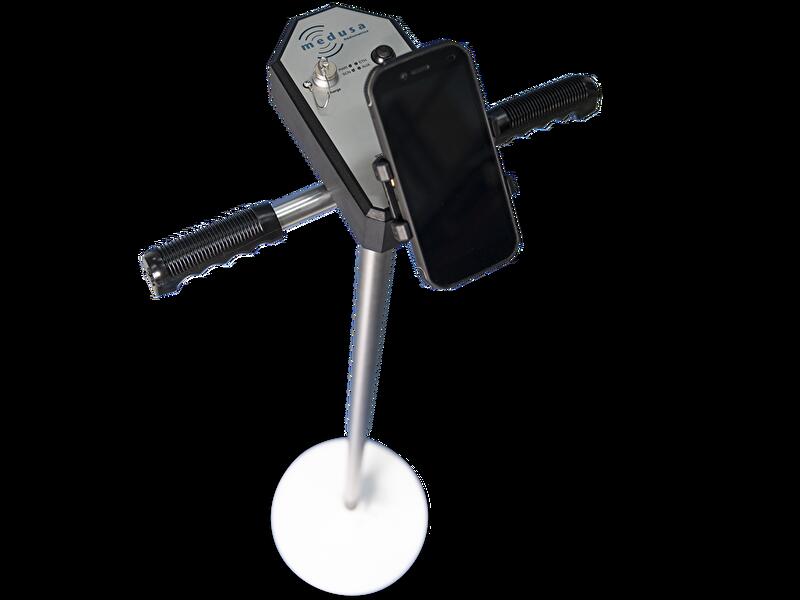

RhoC5 control panel close-up

Leading in gamma-ray sensors

Leading in innovative gamma-ray solutions

Academic collaboration

Scientific collaboration with eminent research institutes and peer-reviewed publications of the analysis procedures.

Experienced

We have over 20 years of experience in developing gamma–ray spectrometers and applications.

Specifications

Gamma-ray spectrometer
Scintillation crystal
Mapping speeds n/a
Recording frequency
Online Radionuclide analysis
GPS
Type
Signals
Accuracy ~0.01g/cm3
RTK accuracy
Data
Format JSON, NMEA, CSV
Streaming RS-232, ethernet and Wi-Fi and Bluetooth
Sensors Soil density, GPS, moisture
Internal storage 16 GB
Mechanical
Dimension 30 mm ⌀ x 1317 mm (L)
Weight 1.8 kg
Operating T -20 to +85 °C
IP rating IP68
Electrical
Input voltage 5V
Power consumption
Battery Internal
Connectivity
Wi-Fi 2.4 and 5 Ghz
Ethernet 100 Mbps
Port RS-232

FAQ

mDOS & Gamman

mDOS

Whether doing an airborne survey, locating a lost source with a UAV, or using our detector for a handheld survey for mapping the environment, you can count on using the same familiar interface. mDOS is developed for in-the-field usage. Optimized for real-time monitoring, ease of use and automating your survey workflow.

mDOS documentation

GammAn

GammAn is our comprehensive post-processing software tailored specifically for analyzing measurement results obtained from our gamma-ray detection systems.

Both mDOS and Gamman have been developed with a focus on user-friendliness, ensuring that users of all skill levels can effortlessly navigate and leverage the full potential of our detection systems. Whether you are a seasoned expert or new to gamma-ray analysis, our software packages provide the tools you need for accurate measurements and meaningful data interpretation.

GammAn documentation
