MS-7300

MS-7300

Vehicle borne

MS-7300 side view

12000 G

175 (Ø) x 855 (L) mm

500 hours

internal storage

IP65 waterproof

-20 / + 65 C

artic and dessert mapping

up to 45 km/h

vehicle borne mapping

Do you have applications specific requirements?

We offer knowledge, consultancy and extended manuals.

The Medusa Radiometrics MS-7300 is a high-volume, lightweight, and cost-effective gamma-ray sensor, sharing the same housing as our MS-4000 flagship model.

This sensor is designed for mapping concentrations of ⁴⁰K and ²³²Th (with ²³⁸U signal degraded), primarily due to its 7300 mL EJ200 polymer scintillator.

Looking for a vehicle-mounted solution for ⁴⁰K and ²³²Th mapping on a budget? The MS-7300 is our recommended choice.

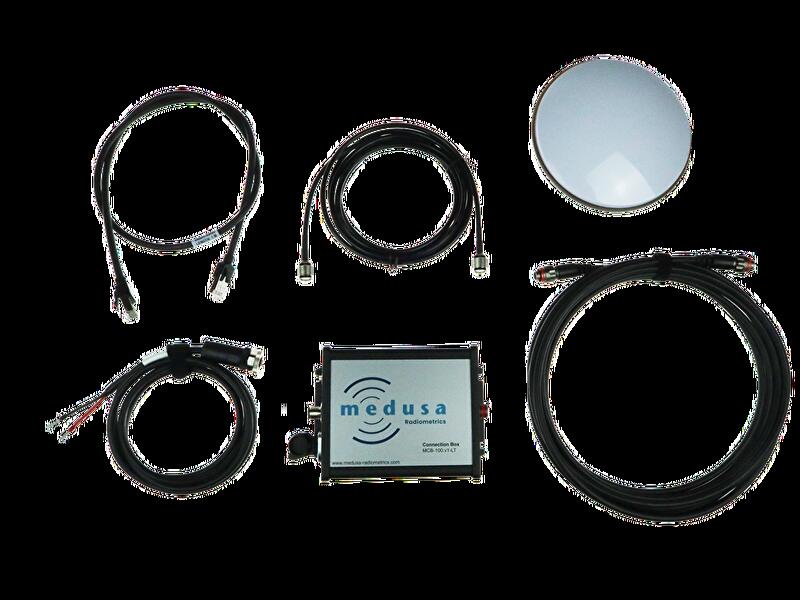

Ms-7300 accesoires

Leading in gamma-ray sensors

Leading in innovative gamma-ray solutions

Academic collaboration

Scientific collaboration with eminent research institutes and peer-reviewed publications of the analysis procedures.

Experienced

We have over 20 years of experience in developing gamma–ray spectrometers and applications.

Specifications


Gamma-ray spectrometer
Scintillation crystal 7300 ml EJ200 polymer
Mapping speeds Up to 45 km/h
Recording frequency Up to 5hz
Online Radionuclide analysis 40K, 238U (degraded), 232Th
GPS
Type uBlox ZED-X20P
Signals All-band (L1/L2/L5/L6+ L-band) GPS, GLONASS, BeiDou, Galileo
Accuracy 1.5 m CEP
RTK accuracy 0.6 cm + 1 ppm CEP
Data
Format JSON, NMEA, CSV
Streaming RS-232, ethernet and Wi-Fi
Sensors Spectrometer, GPS, PTH
Internal storage 16 GB
Mechanical
Dimension 175 (Ø) x 855 (L) mm
Weight 12.0 kg
Operating T -20 to +65 °C
IP rating IP 65
Electrical
Input voltage 9-35V
Power consumption 3W (avg), 6W (max)
Battery External
Connectivity
Wi-Fi 2.4 and 5 Ghz
Ethernet 100 Mbps
Port RS-232

FAQ

mDOS & Gamman

mDOS

Whether doing an airborne survey, locating a lost source with a UAV, or using our detector for a handheld survey for mapping the environment, you can count on using the same familiar interface. mDOS is developed for in-the-field usage. Optimized for real-time monitoring, ease of use and automating your survey workflow.

mDOS documentation

GammAn

GammAn is our comprehensive post-processing software tailored specifically for analyzing measurement results obtained from our gamma-ray detection systems.

Both mDOS and Gamman have been developed with a focus on user-friendliness, ensuring that users of all skill levels can effortlessly navigate and leverage the full potential of our detection systems. Whether you are a seasoned expert or new to gamma-ray analysis, our software packages provide the tools you need for accurate measurements and meaningful data interpretation.

GammAn documentation
