Medusa MS-350 gamma-ray spectrometer

MS-350

The MS-350 is designed for hand-held surveys. However, it is also successfully used as an ultralight drone-borne system. With its weight below 3 kg, it is well-suited for smaller drones.

droneborne

MS-350 in case

2.7 kg
Maximized weight efficiency

3x3'' CsI crystal
Robust & shock proof

500 hours
Internal storage

IP67 waterproof

-20 / + 65 C
Arctic and desert operation

Up to 15 km/h
Typical survey speed

Do you need more information on our sensors?

Contact us, we're ready to collaborate with you.

Application

Drone-borne and hand-held survey
The MS350 is primarily designed for hand-held (walking) surveys. However, it is also being used successfully as a drone-borne system. With its weight below 3 kg, it is well-suited for smaller drones.

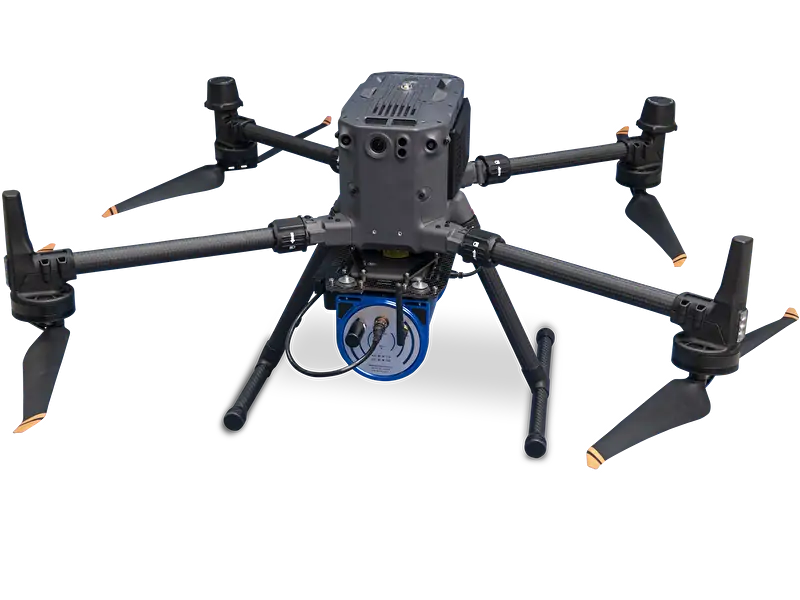

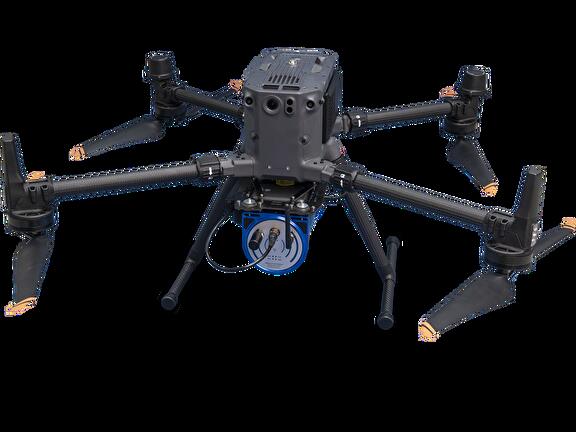

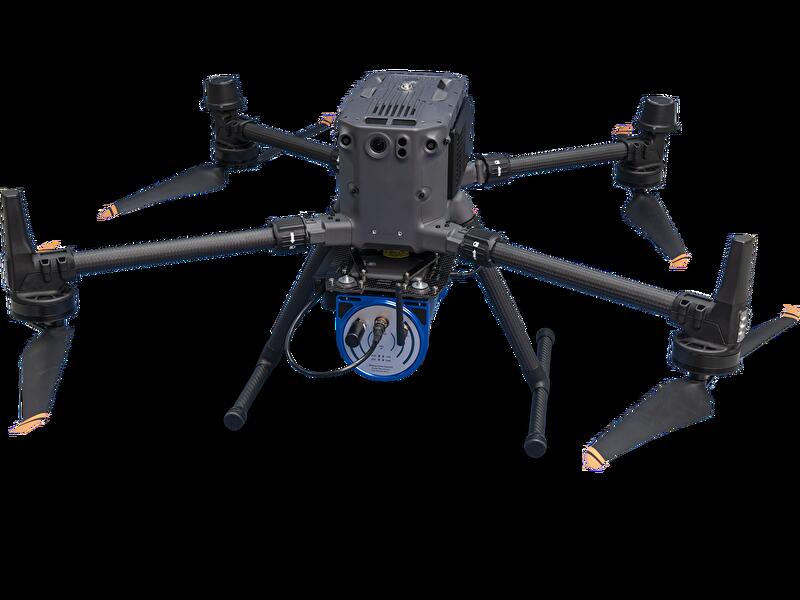

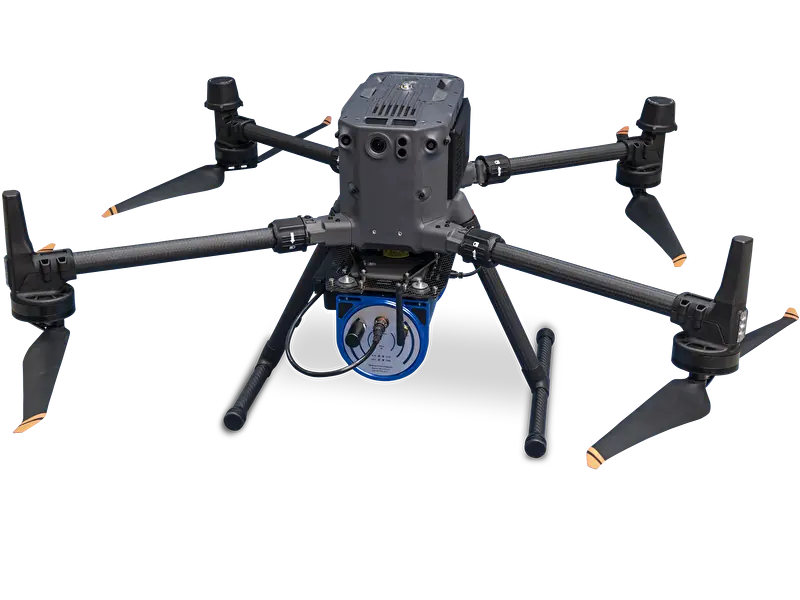

MS350 with DJI drone

Leading in gamma-ray sensors

Leading in innovative gamma-ray solutions

Academic collaboration

Scientific collaboration with eminent research institutes and peer-reviewed publications of the analysis procedures.

Experienced

We have over 20 years of experience in developing gamma–ray spectrometers and applications.

Gamma-ray spectrometer
Scintillation crystal 350 ml Csl
Mapping speeds Up to 15 km/h
Recording frequency Up to 5hz
Online Radionuclide analysis 40K, 238U, 232Th and 137Cs
GPS
Type uBlox ZED-P9P
Signals GLONASS, BeiDou, Galileo
Accuracy 1.5 m CEP
RTK accuracy <1 cm
Data
Format JSON, NMEA, CSV
Streaming RS-232, ethernet and Wi-Fi
Sensors Spectrometer, GPS, PTH
Internal storage 16 GB
Mechanical
Dimension 100 (⌀) x 215(L) mm
Weight 2.7 kg
Operating T -20 to +65 °C
IP rating IP65
Electrical
Input voltage 5-35V
Power consumption 3W (avg), 6W (max)
Battery Up to 8 hours
Connectivity
Wi-Fi 2.4 and 5 Ghz
Ethernet 100 Mbps
Port RS-232

FAQ

mDOS & Gamman

mDOS

Whether doing an airborne survey, locating a lost source with a UAV, or using our detector for a handheld survey for mapping the environment, you can count on using the same familiar interface. mDOS is developed for in-the-field usage. Optimized for real-time monitoring, ease of use and automating your survey workflow.

mDOS documentation

GammAn

GammAn is our comprehensive post-processing software tailored specifically for analyzing measurement results obtained from our gamma-ray detection systems.

Both mDOS and Gamman have been developed with a focus on user-friendliness, ensuring that users of all skill levels can effortlessly navigate and leverage the full potential of our detection systems. Whether you are a seasoned expert or new to gamma-ray analysis, our software packages provide the tools you need for accurate measurements and meaningful data interpretation.

GammAn documentation

mDOS en Gamman
