gSMS-100

The gSMS is designed for stationary, long-term outdoor measurements. The data is uploaded to the cloud to give insight into the readings, used for monitoring of radionuclides and soil moisture.

Stationary monitoring

gSMS what is in the box

1.5 kg
Ultralight

2x2'' CsI Crystal
Robust & shock-proof

16GB
700+ days interal storage

IP67
waterproof

-20 / + 65 C
Arctic and desert operation

Stationary measurements
Long term outdoor monitoring

Do you need more information on our sensors?

Contact us, we're ready to collaborate with you.

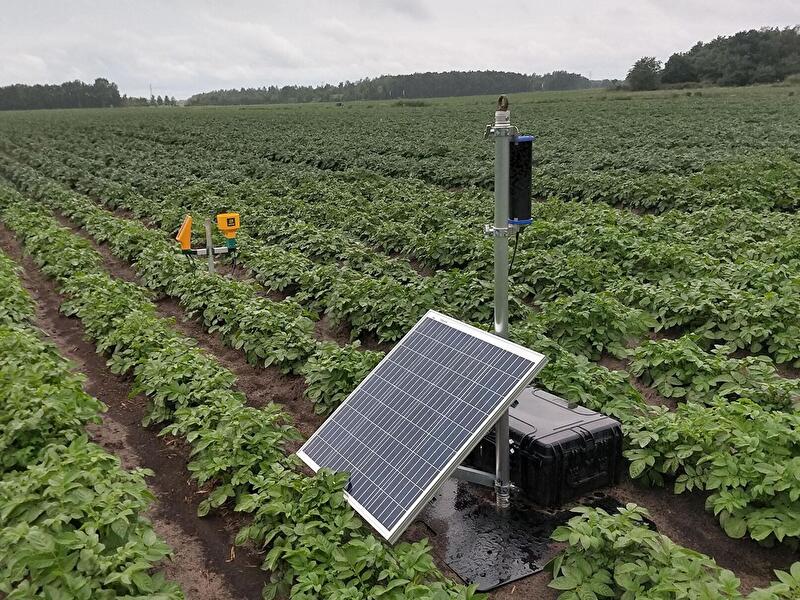

The Medusa gamma Soil Moisture Sensor (gSMS) records stationary radionuclide concentrations. The system is mainly designed for monitoring applications, in which it continuously records and uploads data to an online portal. This real-time data can be used to monitor radiation levels for security applications.

A new soil moisture sensor

A revolutionary new way to derive soil moisture contents of an area that find applications in agricultural applications. The major advantage of this sensor over standard soil moisture sensors is the large field of view. The gSMS can give an average moisture content of an entire field.

gamma Soil Moisture Sensor

Leading in gamma-ray sensors

Leading in innovative gamma-ray solutions

Academic collaboration

Scientific collaboration with eminent research institutes and peer-reviewed publications of the analysis procedures.

Experienced

We have over 20 years of experience in developing gamma–ray spectrometers and applications.

Gamma-ray spectrometer
Scintillation crystal 100 ml Csl
Mapping speeds Stationary
Recording frequency Up to 1hz
Online Radionuclide analysis 40K, 238U, 232Th and 137Cs (more on request)
GPS
Type uBlox ZED-P9P (optional)
Signals GLOSNASS, BeiDou, Galileo
Accuracy 1.5 m CEP
RTK accuracy <1 cm
Data
Format JSON, NMEA, CSV
Streaming RS-232, ethernet and Wi-Fi
Sensors Spectrometer, GPS, PTH, rain monitor
Internal storage 16 GB
Mechanical
Dimension 80mm ⌀ x 250 mm (l)
Weight 1.5 kg
Operating T -20 to +65 °C
IP rating IP65
Electrical
Input voltage 5-35V
Power consumption 3W nominally (6W max) (and has a power saving mode)
Battery Solar powered (optional)
Connectivity
Wi-Fi 2.4 and 5 Ghz
Ethernet 100 Mbps
Port RS-232

FAQ

mDOS & Gamman

mDOS

Whether doing an airborne survey, locating a lost source with a UAV, or using our detector for a handheld survey for mapping the environment, you can count on using the same familiar interface. mDOS is developed for in-the-field usage. Optimized for real-time monitoring, ease of use and automating your survey workflow.

mDOS documentation

GammAn

GammAn is our comprehensive post-processing software tailored specifically for analyzing measurement results obtained from our gamma-ray detection systems.

Both mDOS and Gamman have been developed with a focus on user-friendliness, ensuring that users of all skill levels can effortlessly navigate and leverage the full potential of our detection systems. Whether you are a seasoned expert or new to gamma-ray analysis, our software packages provide the tools you need for accurate measurements and meaningful data interpretation.

GammAn documentation
